Bay windows are a key feature of many older homes, especially Victorian properties across Chester, Flintshire, Wrexham, Ellesmere Port, Prestatyn and the Wirral. However, they are also one of the most common areas to suffer from cracking and movement due to how they were originally built.
Quirks Property Maintenance Ltd specialise in professional bay window stabilisation, crack repairs and structural reinforcement, using modern repair methods that avoid the need for costly underpinning.
โญ Why Do Bay Windows Crack in North Wales, Cheshire and Wirral? ๐งฑโ ๏ธโ
Victorian and older bay windows are particularly prone to cracking and movement for several reasons:
1. Shallow Victorian foundations
Bay windows were often built on shallower footings than the main house. Over time, the main structure and the bay can settle at different rates, causing visible cracks. This is known as differential movement.
2. Window replacements without proper support
When windows in bay areas are replaced, the structure above is sometimes not adequately supported. As ground floor windows are removed, the weight of the upper bay can cause cracking if temporary supports are not correctly installed.
3. Weaker structural points
Window openings are naturally weaker than solid walls. This makes bay areas more vulnerable to settlement, seasonal movement, weather exposure and any disturbance during alterations.
Cracking to bay windows and surrounding walls is alarming, but it is also a very common issue and can usually be resolved without underpinning.
Signs Your Bay Window Needs Repair in North Wales, Cheshire and Wirral ๐
Bay windows often show warning signs before major problems develop. Common symptoms include:
โข Diagonal or stepped cracks around the bay
โข Cracks above window heads or below sills
โข Gaps appearing between the bay and the main house
โข Window frames becoming stiff or difficult to open
โข Bulging, uneven or distorted brickwork
โข Hairline cracks inside near skirting boards or window reveals
โข Damp patches or water staining around the bay
โข Signs of the bay โpulling awayโ from the property
If you notice any of these signs, it is important to have the bay assessed by a professional.
Our Structural Repair Solution โ Helifix Helibar System ๐ฉ๐ ๏ธโ
Using modern structural repair systems, most bay window cracking does not require underpinning. Quirks use the Helifix Helibar system, a proven method for stabilising and reinforcing cracked bay windows.
This system:
โข Strengthens the masonry from within
โข Ties cracked or separated sections back together
โข Reduces further movement
โข Maintains the appearance of the property
โข Provides a long-term, non-invasive repair method
Our experienced team are trained in Helifix installation and regularly undertake bay window repairs, diagnosing the root cause and recommending the most appropriate solution.

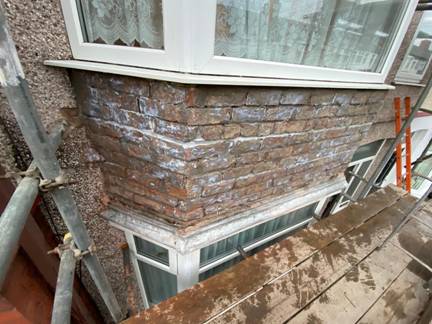

How Our Helifix Repair Works โ Step by Step ๐ ๏ธ
Our bay window repair in North Wales, Cheshire and Wirral process typically includes:
1. Structural inspection
We assess the cause and extent of cracking, check for differential movement and consider any other contributing factors such as drainage or ground conditions.
2. Preparation and removal of loose mortar
Cracked and failed mortar joints are cleaned out and prepared to receive reinforcement.
3. Precision slots cut into mortar joints
Thin slots are created in selected brick courses using specialist tools, following a designed pattern.
4. Installation of stainless steel Helibars
Helifix Helibar rods are inserted into the prepared slots to tie and reinforce the brickwork.
5. Resin/grout bonding
High-strength grout or resin is used to bond the bars and masonry together, creating a hidden reinforcement system.
6. Repointing and external finishing
Mortar joints are repointed and blended to match the existing brickwork as closely as possible.
7. Internal making good
Where required, we repair internal plaster, fill cracks and can arrange redecoration to leave the area neat and tidy.
This approach restores strength and stability to the bay window while keeping visual changes to a minimum.
Guarantees and Workmanship Assurance ๐ก๏ธ
Structural work needs trust and reassurance. When you choose Quirks, you benefit from:
โข Workmanship guarantees available
โข Repairs carried out to current industry standards
โข Fully trained structural repair engineers
โข Optional photographic documentation of the works
โข Long-lasting reinforcement designed to prevent future movement
We aim to provide repairs that not only look good when finished but also perform well for many years.
Working with Surveyors, Lenders and Estate Agents ๐ข
Cracked bay windows can be flagged on survey reports and can worry buyers and mortgage lenders. Quirks are experienced in working alongside:
โข RICS surveyors
โข Banks and mortgage lenders
โข Building control inspectors
โข Estate agents
โข Insurance assessors
We can provide:
โข Evidence of repairs
โข Before and after photographs
โข Helifix installation records
โข A completion summary for surveyors or lenders
This helps reduce concerns during house sales, remortgages or insurance assessments.
Case Study โ Bay Window Crack Repair in Chester ๐ก
A Victorian terrace in Chester had noticeable cracking around the bay window, with stepped cracks in the brickwork and internal plaster damage.
Scope of works:
โข Structural inspection and diagnosis
โข Cleaning out of failed mortar joints
โข Installation of Helifix Helibars to designed positions
โข Resin/grout bonding and repointing
โข Internal plaster repairs and making good
Outcome:
The bay window was stabilised without underpinning. Cracks were removed, movement ceased and the repair was accepted by the clientโs surveyor. The homeowner avoided the disruption and cost associated with traditional underpinning.
Case Study โ Bay Window Movement on a Semi-Detached Property in Flintshire ๐งฑ
A semi-detached property showed signs of the bay moving away from the main wall, with visible gaps and cracks around the junction.
Scope of works:
โข Assessment of movement and foundation conditions
โข Helibar reinforcement installed across critical brickwork courses
โข Tying of bay back to main structure
โข External repointing and colour matching
โข Internal crack filling and redecoration to affected areas
Outcome:
The bay was re-tied to the main structure, and gaps were closed. The client reported improved peace of mind and was able to proceed with interior refurbishment, knowing the structure had been properly addressed.

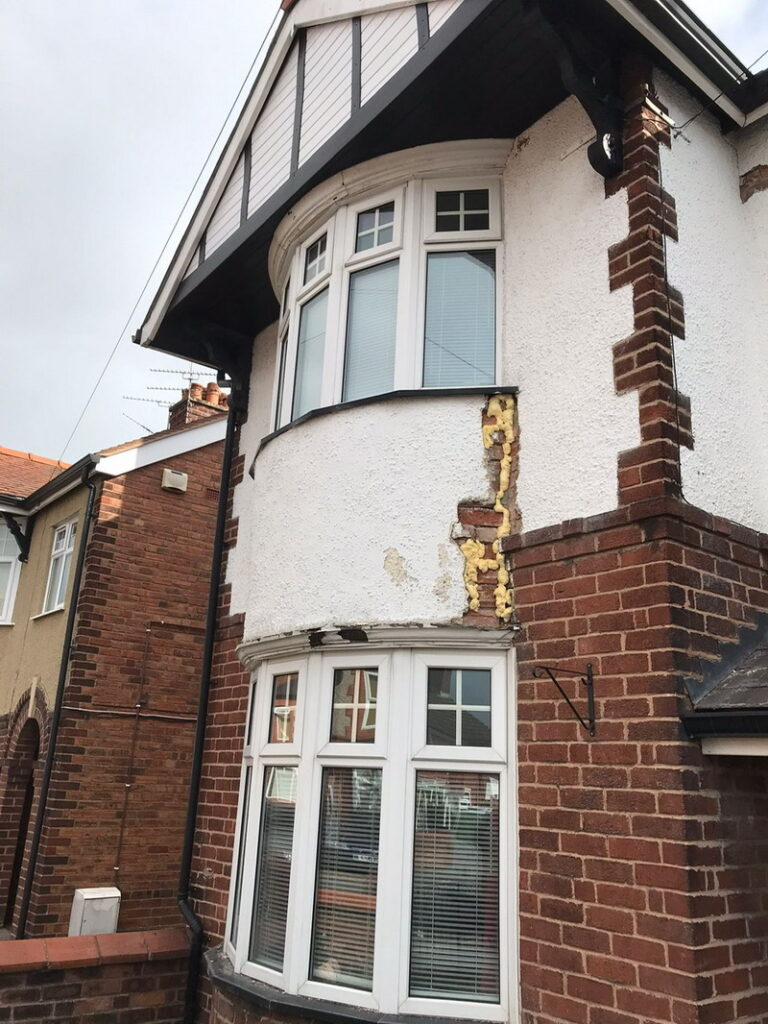

Bay window stabilisation Before

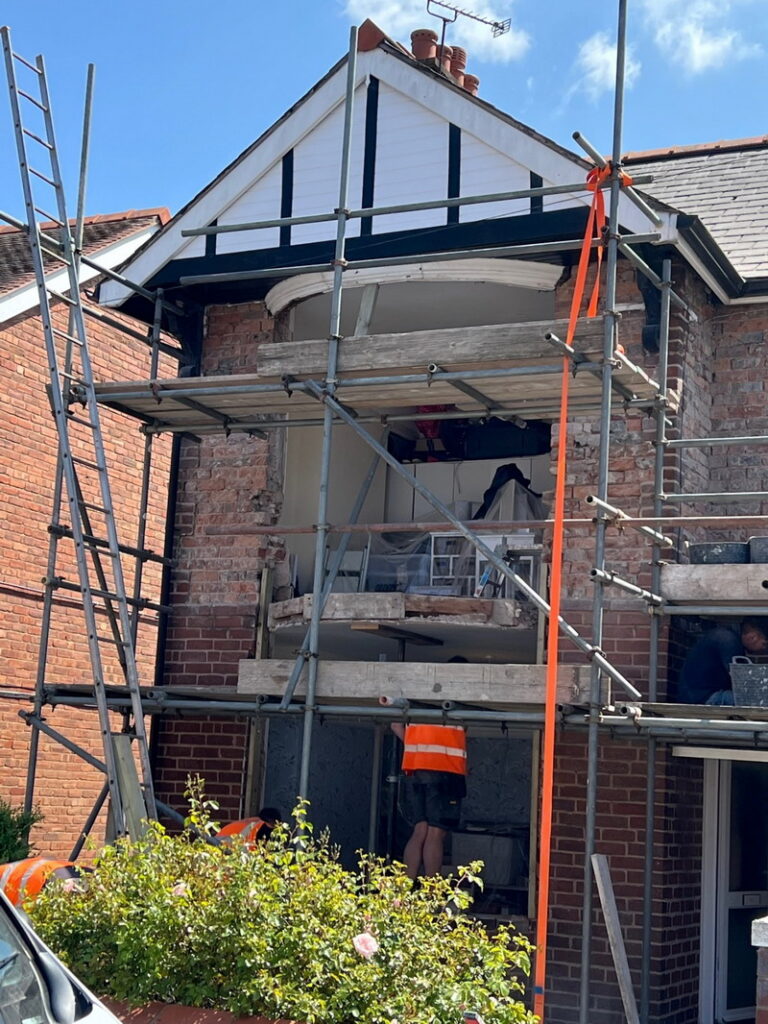

Bay window stabilisation During

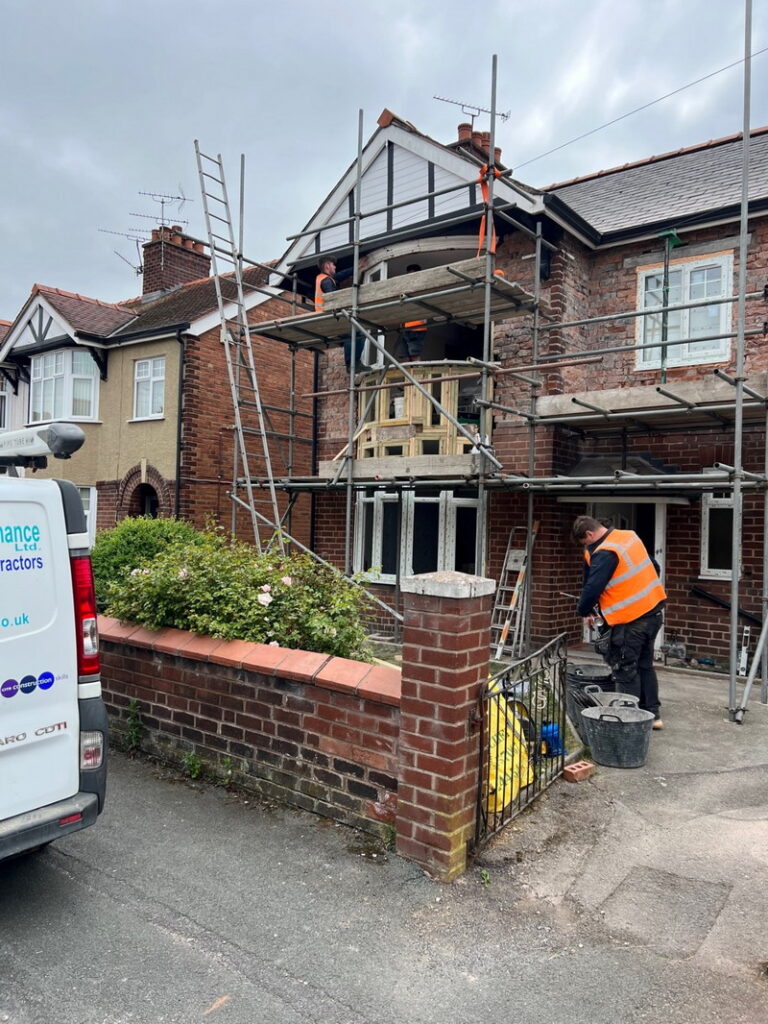

Bay window stabilisation During

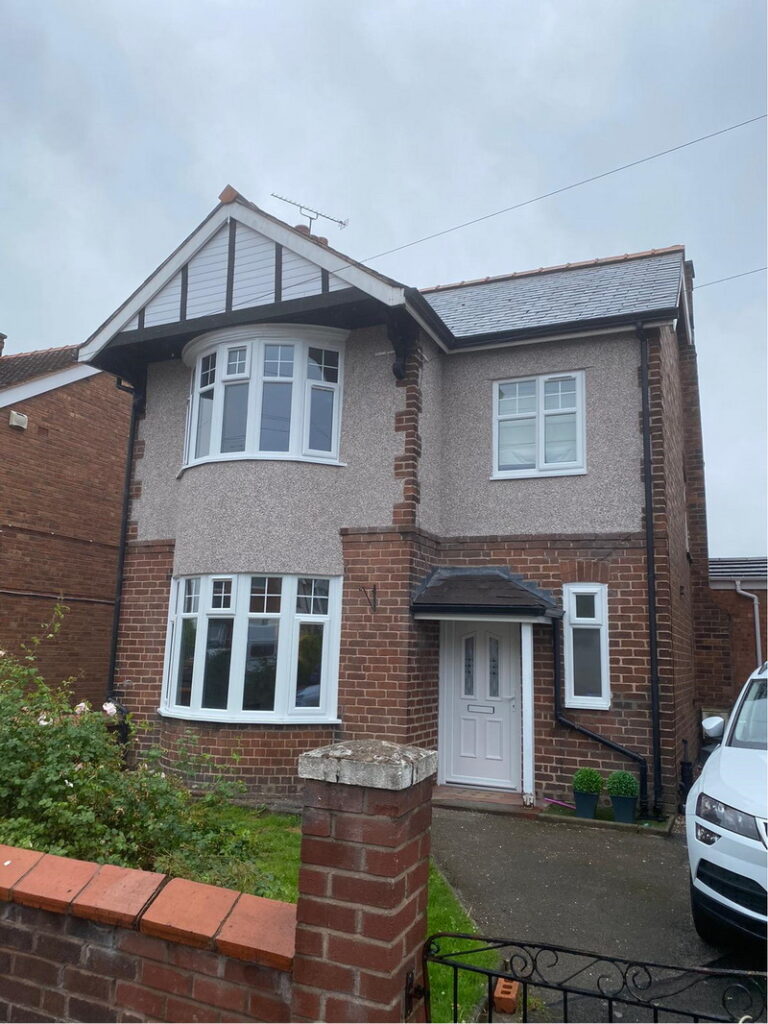

Bay window stabilisation After
Areas We Cover ๐โ
We provide bay window repair and Helifix structural stabilisation services across:
โข Chester
โข Flintshire
โข Deeside
โข Connahโs Quay
โข Buckley
โข Mold
โข Wrexham
โข Ellesmere Port
โข Prestatyn
โข Hawarden
โข Wirral
โข Surrounding areas by request
Get a Bay Window Repair Quote in North Wales, Cheshire and Wirral ๐๐
If you have a cracked bay window in North Wales, Cheshire and Wirral, gaps appearing, or concerns raised by a survey, we can help.
We offer:
โข Honest advice on the best repair options
โข Clear, itemised quotations
โข Professional, tidy workmanship
โข Coordination with surveyors or lenders where required
To arrange an inspection or quote, contact Quirks Property Maintenance Ltd and a member of our team will be happy to help.
