A Fast, Efficient and Friendly Building and Maintenance Service You Can Depend On.
Lateral Restraint & Wall Tie Installation
Lateral Restraint & Wall Tie Installation Chester, Flintshire, Cheshire, Wrexham, Ellesmere Port, The Wirral & North Wales
Structural Wall Stabilisation & Movement Control
At Quirks Property Maintenance Ltd, we carry out professional lateral restraint and wall stabilisation works across Chester, Flintshire, Cheshire, Wrexham, Ellesmere Port, the Wirral & North Wales.
We install lateral restraint systems to stabilise walls affected by movement, preventing further displacement and protecting the structural integrity of your property.
Wall movement is a common issue in UK properties—particularly older buildings—and if left untreated, it can lead to serious structural failure.
All works are carried out correctly, safely, and in full compliance with current standards.
What Is Lateral Restraint?
Lateral restraint refers to the method of securing walls that are moving or “bowing” away from the structure.
This movement can occur when walls lose their connection to internal floors, roofs, or cross walls.
Lateral restraint systems reconnect and stabilise the structure, preventing further outward movement.
Signs You May Need Lateral Restraint
• Bowing or bulging external walls
• Walls pulling away from the structure
• Cracks forming along internal or external walls
• Movement to gable walls
• Visible separation at ceiling or floor levels
If a wall is moving outward, structural stabilisation is required as soon as possible.
What Causes Wall Movement?
Common causes include:
• Failure of existing wall ties or restraints
• Wind loading (especially on gable walls)
• Lack of restraint in older properties
• Structural vibration or external forces
• Poor original construction or ageing materials
Gable walls are particularly vulnerable due to their height and exposure to wind forces.
How We Install Lateral Restraint Systems
Method 1 – Floor Joist Restraint
• Drill through external wall into floor joists
• Install stainless steel restraint bars
• Resin bond into masonry
• Secure connection between wall and floor structure
Method 2 – Cross Wall Restraint
• Drill into internal cross wall from external face
• Install specialist stainless steel ties
• Inject resin or cementitious grout
• Create structural connection between walls
Method 3 – Internal Restraint (If Required)

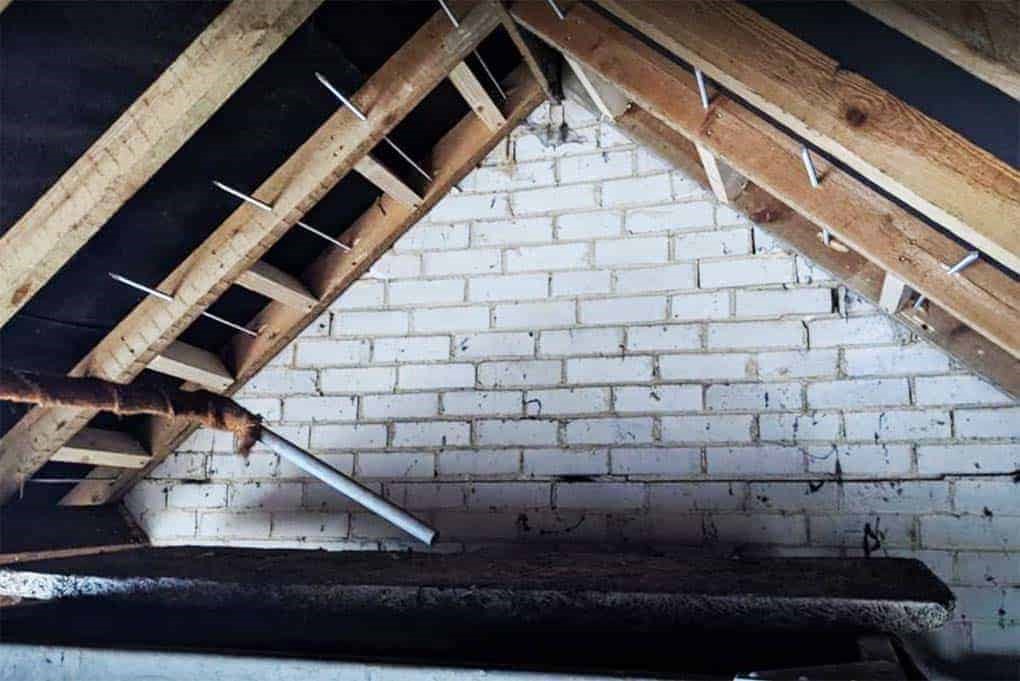

• Install straps or helical bars internally
• Fix to structural elements
• Reinstate finishes after installation
This method may require internal access and making good.
Important Information
Lateral restraint does not pull walls back into position.
It stabilises the wall and prevents further movement.
If movement is excessive, partial or full rebuild may be required.
Early intervention is critical to avoid major structural work.
Case Studies – Lateral Restraint & Wall Tie Installation

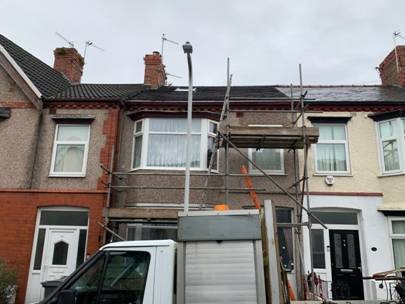

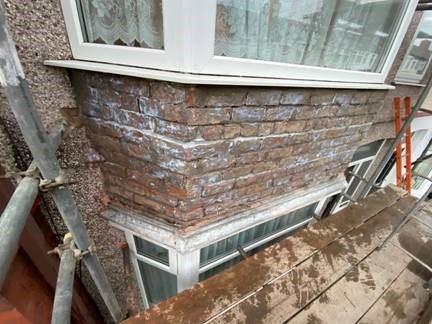

- Case Study – Lateral Restraint Installation (Wrexham)
Project Overview
Issues Identified:
• Outward bowing to external wall
• Loss of restraint from floor structure
• Cracking internally and externally
Solution Provided:
• Installation of stainless steel lateral restraint bars

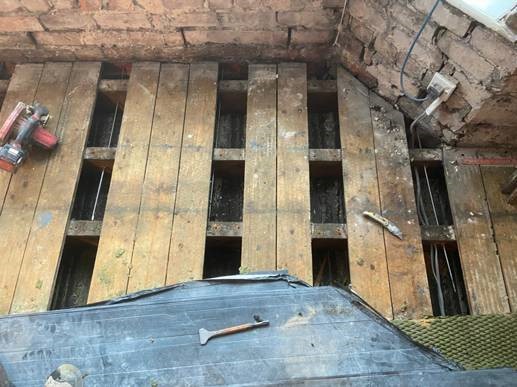

• Connection to existing floor joists
• Localised crack repairs
Outcome:
• Wall stabilised successfully
• Further movement prevented
• Property made structurally safe
Wall movement is often linked to other structural issues. We also provide:
• Our Crack stitching services for structural cracks
• Our Brick repair services for damaged masonry
• Our Repointing services for failed mortar joints
• Our Damp proofing services where moisture is a factor
• Our Structural alteration services (RSJs) for load-bearing works
Areas We Cover
We carry out lateral restraint and structural stabilisation works across:
Chester, Flintshire, Cheshire, Wrexham, Ellesmere Port, the Wirral & North Wales
FAQs – Lateral Restraint & Wall Movement
How much does lateral restraint cost in Chester or Flintshire?
Costs vary depending on access, severity of movement, and method required. A site visit is recommended.
Is lateral restraint a permanent solution?
Yes, when installed correctly it prevents further movement and stabilises the structure.
Will the wall move back into position?
No—lateral restraint prevents further movement but does not reverse existing bowing.
Do I need a structural engineer?
For significant movement, we may recommend an engineer to confirm the required solution.
Do you cover Cheshire, Wrexham and North Wales?
Yes, we cover Chester, Flintshire, Cheshire, Wrexham, Ellesmere Port and surrounding areas.
Free Consultation & Quotation
If you’ve noticed wall movement or bowing in your property in Chester, Flintshire, Cheshire, Wrexham or North Wales, early action is essential.
We provide:
• Professional assessment
• Clear, honest advice
• Detailed quotation with recommended solutions
Get in Touch
Send Photos via WhatsApp for a quick assessment.
Our Commitment
Long-lasting, professional solutions using proven industry methods
