Specialist Building & Property Maintenance Services You Can Depend On.

Structural alterations · Chester, Hoole, Upton, Handbridge & Ellesmere Port

Structural alterations in Chester and Ellesmere Port,
from the engineer’s drawing to a room ready to decorate

Load-bearing walls removed, steel beams installed, chimney breasts taken out and new openings formed across Chester and Ellesmere Port, designed by a structural engineer and carried out under Building Control in England. We do the temporary works, the structural work and the making good, so you deal with one contractor from the first photograph to a room ready to decorate.

Terrace knock-throughs and spine-wall removals
Steel beams to the engineer’s calculations, boxed and plastered
Conservation-area and Building Control advice before anything is priced


WhatsApp or email gets the quickest reply. We come back to you as soon as we can.
Google5.0★★★★★Based on 150+ Google reviews
Trading since2008
£5 millionpublic liability insurance in place
Workmanship guarantee on completed works
One contractorAll trades under one roof

In short: Most of Chester’s housing has solid load-bearing walls inside as well as out, so almost any wall you want gone needs an engineer first. Send us photographs of the wall from both sides and the rooms above it, and we will tell you what it is carrying and what replacing it involves.

Chester housing

Structural work in Chester's housing

Chester’s housing was built in distinct waves, and the wave decides the job. The Victorian and Edwardian terraces of Hoole, Handbridge, Newton, Boughton and the Garden Quarter are solid brick throughout, with the wall between the two reception rooms and the wall between kitchen and back room both carrying the floor above: the kitchen-diner knock-through is the commonest alteration we do in the city, and almost always involves a party wall on at least one side. The inter-war semis of Upton, Vicars Cross and Newton usually have one spine wall doing the same work, and opening the rear wall for a run of doors is the usual way to get light into their kitchens. The post-war estates of Blacon, Lache and Ellesmere Port vary more: some have load-bearing internal walls, some have stud walls carrying more than they look like they should, and the engineer’s visit sorts out which.

Two things are more likely to apply in Chester than elsewhere in our area. Much of the city centre, Handbridge, Hoole and Curzon Park sits in a conservation area, and some houses are listed; structural work inside a listed building, or anything that changes the outside of a house in a conservation area, may need consent before Building Control gets involved, and we tell you when we see the photographs. And because so much of the stock is terraced, the wall you want to open is often shared with the neighbour, which brings a party wall agreement into it.

Building Control in Chester and Ellesmere Port is Cheshire West and Chester Council, under the Building Regulations in England. The application and fee are yours; we arrange the inspections at each stage of the work.

Areas we cover

  • Chester city, Hoole and NewtonCH1, CH2
  • Handbridge, Curzon Park, Lache and SaltneyCH4
  • Upton, Vicars Cross, Boughton, Christleton, Huntington and Great BoughtonCH2, CH3
  • Blacon, Mollington and CapenhurstCH1
  • Ellesmere Port, Little Sutton, Great Sutton and WhitbyCH65, CH66
North WalesNORTH WALESFLINTSHIREWrexhamWREXHAMChesterCHESTERWirralWIRRALEllesmere PortELLESMERE PORTConwyCONWYDenbighshireDENBIGHSHIRECheshireCHESHIREA55M53M56A483A494Boundaries © OpenStreetMap contributors

We cover the CH1 to CH4 postcode districts in Chester, CH65 and CH66 in Ellesmere Port, and the villages around them.

Chester — house, hall opened into the rear room

CHESTER — HOUSE, HALL OPENED INTO THE REAR ROOM

Recent load-bearing wall removal project in Chester

The owners of this Chester house wanted the hall opened into the rear room so the ground floor flowed through to the garden doors. The wall between them was load-bearing, so a structural engineer designed a steel beam to carry the floor above. Quirks took the wall out, put the steel in, plastered the opening and laid the new parquet floor, so the owners dealt with one contractor for the whole job.

BEFORE

The wall out, the steel boxed

With the floor above supported, the wall between the hall and the rear room was taken out and the beam set on its bearings. The first photograph shows the opening at that stage from the hall: the steel boxed in with plasterboard, the reveals lined, and the old floor finishes stripped back to the subfloor ready for the new floor.

From the kitchen side, in the second photograph, the same opening shows the width of the room it created, with the kitchen door reset into the new wall line.

DURING

Lined and ready for plaster

The beam was boxed with plasterboard and the reveals lined to a straight edge either side, so the plasterer had a clean opening to work to. The third photograph shows that stage from the hall, with the dust sheets down and the furniture covered in the rear room.

At the same time the subfloor through both rooms was prepared for the new floor, so the finish could run through the opening as one surface rather than stopping at the old wall line.

AFTER

Plastered, with the parquet laid through

The last photograph is the finished opening: the beam line plastered and square, a timber trim at the head, and the new herringbone parquet floor laid through the rear room and up to the hall. The two rooms now read as one space from the front door to the garden.

Decoration was left to the owners.

Wide internal opening with the steel beam boxed in pink plasterboard, reveals lined and the floor stripped to the subfloor
The wall out and the beam boxed, seen from the hall before plastering.
The same opening seen from the kitchen, with the plasterboard-boxed beam above and the kitchen door reset in the new wall line
The opening from the kitchen side, with the door reset into the new wall line.
Opening with the beam boxed in plasterboard and reveals lined, dust sheets on the floor and furniture covered beyond
Lined and ready for the plasterer, the rear room sheeted up.
Finished plastered opening with a timber head trim and a herringbone parquet floor running through to bi-fold doors
Plastered through, with the parquet laid as one floor from the hall to the garden doors.

This study covers the structural work, the plastering and the new floor, all carried out by Quirks. The beam was designed by a structural engineer.

Scope — what was done

  • Floor above supported before the wall came out
  • Load-bearing wall between the hall and the rear room removed
  • Steel beam, to the engineer’s design, set on its bearings
  • Beam boxed in plasterboard and the reveals lined
  • Opening and reveals plastered
  • Subfloor prepared and herringbone parquet floor laid through the rear room
  • Kitchen door reset; waste removed and the site cleared
LocationChester
PropertyHouse
WorkLoad-bearing wall removed between the hall and the rear room; steel beam installed; opening plastered; new parquet floor laid
Designed byStructural engineer
Building ControlWork carried out under Building Control (England)
FloorHerringbone parquet, laid by Quirks
DecorationLeft to the owners
Load-bearing wall removalSteel beamParquet floorChester

What customers say

★★★★★ 5.0 · 150+ Google reviews

  • ★★★★★

    “Just completed a complete house renovation with Quirks including structural changes to make a new room, renovating other rooms, some external repairs and fitting new kitchen and bathroom. They were the most competitive quote I received and the ones I felt most comfortable with. Michael Quirk is very helpful and good to work with. Work to a high standard and they wanted it to be right for me, so were amenable to making a few adjustments, even when there were a couple of errors in my plans. Difficult sometimes keeping on top of everything and making the right decisions when you’re remote and have moved out of the house, but it worked well exchanging photos on WhatsApp. Would definitely recommend them.”

    Graham Cook

  • ★★★★★

    “Excellent communication throughout the whole work carried out. Even relieved the stress by liasing with the kitchen provider and structural engineer when required. Lads are also a credit to the company. Prompt start times and work areas clean at the end of each day. Fully satisfied. Thanks Mr Quirk”

    Robbo Roberts

  • ★★★★★

    “The team were polite, hard working and efficient. They coordinated well with Building Regs and insured the job was completed on time and to a high standard.”

    Peter Harrison

Read all our reviews on Google

One contractor

One contractor from the engineer’s drawing to a room ready to decorate

Structural work is rarely only structural. We do the parts around it too, under one quotation.

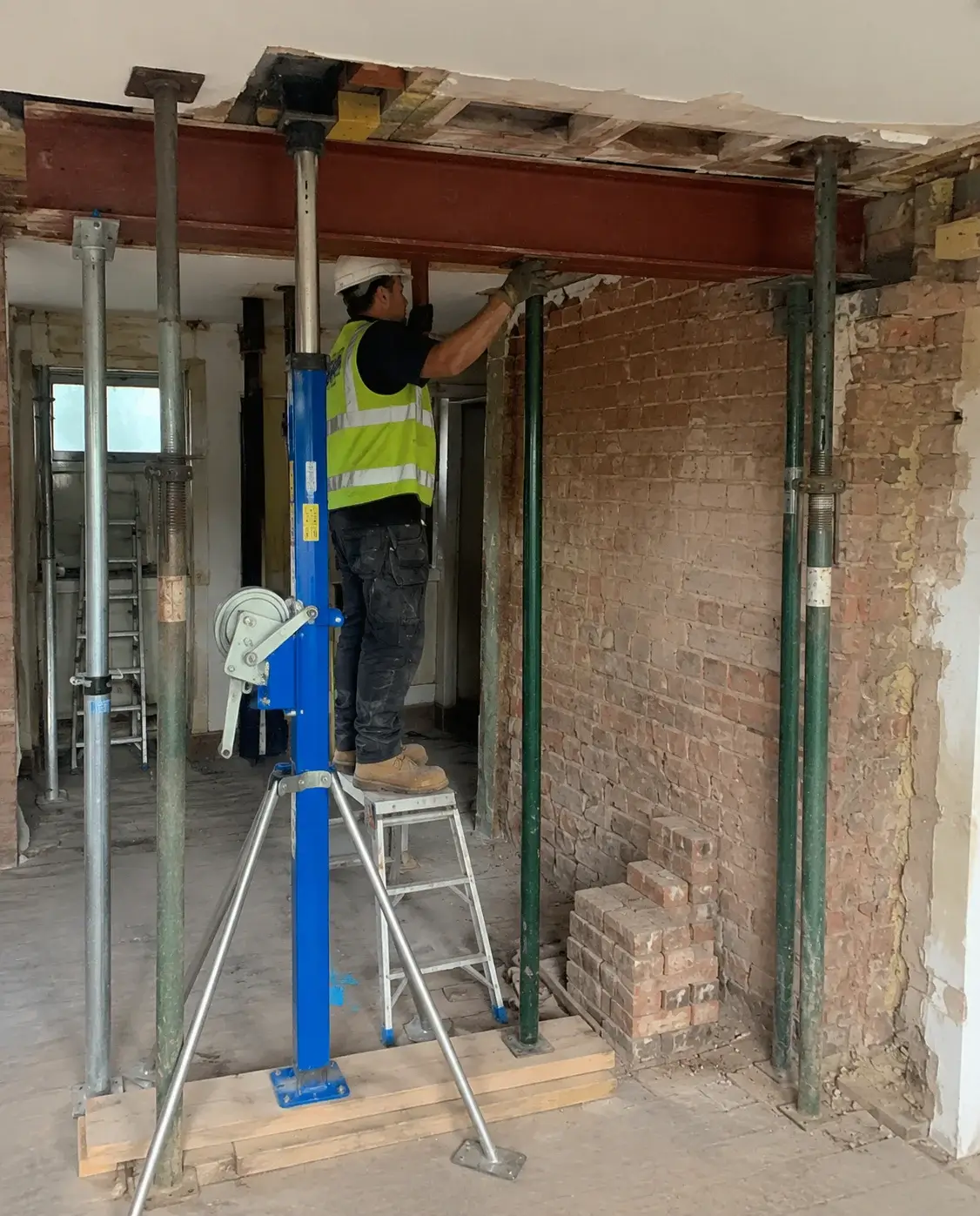

  • Wall removal and steel beams

    Load-bearing walls taken out, steel beams and padstones to the engineer’s design, openings formed and lined.

  • Structural repairs

    Cracked masonry stitched with helical bars, spalling concrete cut back and repaired, failed lintels and arches put right.

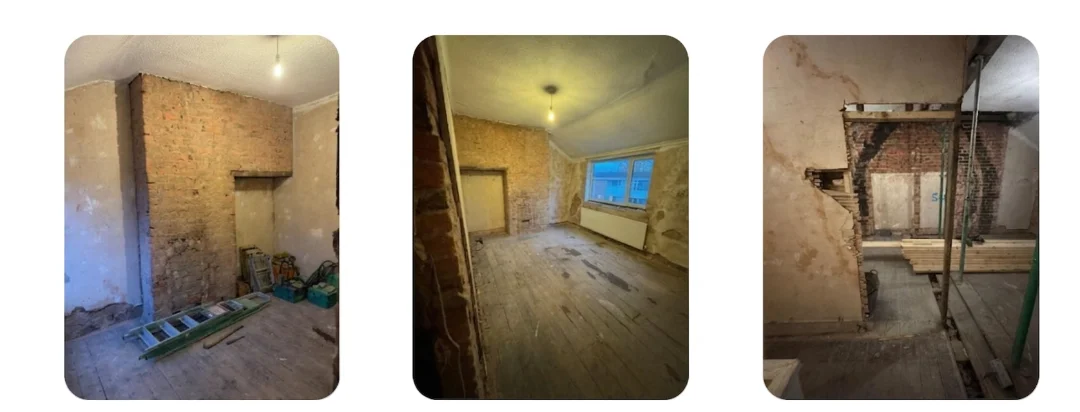

  • Chimney breasts

    Removed with the stack above supported or taken down to the engineer’s design; see fireplace removal.

  • Plastering, flooring and joinery

    Made good after the structure: beams boxed and skimmed, floors re-laid, doors re-hung, ready for decoration.

More from us

Related services

Your questions

Frequently asked questions

Is the wall between my two front rooms in a Chester terrace load-bearing?

In the Victorian and Edwardian terraces of Hoole, Handbridge and Newton, almost always: it carries the first-floor joists and often the wall above. Send us photographs from both sides and of the room above and we will tell you whether an engineer needs to look before anything is priced; in these houses the answer is usually yes.

My house is in a Chester conservation area, or is listed. Can I still open it up?

Usually, but the order of things changes. Internal structural work in a listed building needs listed building consent before Building Control; in a conservation area, internal work is normally fine but anything that changes the outside, such as a new rear opening, may need planning permission. We tell you which applies when we see the photographs and the address, and the application is yours to make.

Do I need a party wall agreement for my Chester terrace?

If the wall you are opening is the one shared with next door, or the work is close to their foundations, a party wall agreement may be needed before work starts. That is arranged between you and your neighbour. Most kitchen-diner knock-throughs in a terrace are on an internal wall, not the party wall, and do not need one; we tell you which yours is when we quote.

Do I need Building Control in Chester?

Yes. Removing a load-bearing wall, taking out a chimney breast or forming a new opening is notified to Cheshire West and Chester Council’s Building Control under the Building Regulations in England. The application and fee are yours; we arrange the inspections at each stage of the work and you get the completion certificate at the end, which you will want when you sell.

Can you hide the steel beam?

Often. A beam can sit inside the floor depth so the ceiling runs flush, or be boxed in as a shallow downstand and plastered. Which is possible depends on the floor construction and the engineer’s design; the case study on this page shows a boxed beam with a timber head trim.

How much does a structural alteration cost in Chester?

It depends on the length and size of the steel, whether a wall or a chimney breast is coming out, how much temporary support is needed, whether the floor above has to be opened, the engineer’s and Building Control fees, any conservation-area or party-wall work, and how much making good follows. Most jobs we can price from photographs — send yours on WhatsApp or by email and we’ll come back with a written quotation.
